PRODUCT

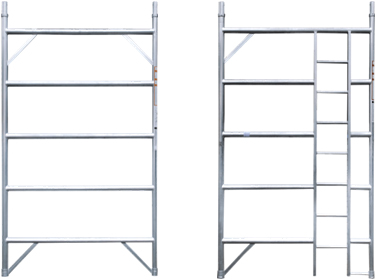

Aluminum Mobile Scaffold Rung Frames
Model Description Weight(kg) Weight(lbs)
AL.MST.DWF.5R 5-Rung Double Width Frame 1350x2320mm(53.1"x91.3") 11.52 25.39
AL.MST.DWF.4R Aluminum 4-Rung Double Width Frame 1350x1856mm(53.1"x73") 9.62 21.21
AL.MST.DWF.3R Aluminum 3-Rung Double Width Frame 1350x1392mm(53.1"x54.8") 7.72 17.02
AL.MST.DWF.2R Aluminum 2-Rung Double Width Frame 1350x945mm(53.1"x37.2") 4.74 10.46
AL.MST.SWF.5R Aluminum 5-Rung Single Width Frame 750x2320mm(29.5"x91.3") 8.99 19.81
AL.MST.SWF.4R Aluminum 4-Rung Single Width Frame 750x1856mm(29.5"x73") 7.59 16.74
AL.MST.SWF.3R Aluminum 3-Rung Single Width Frame 750x1392mm(29.5"x54.8") 6.20 13.67
AL.MST.SWF.2R Aluminum 2-Rung Single Width Frame 750x945mm(29.5"x37.2") 3.73 8.23
AL.MST.DWLF.5R Aluminum 5-Rung Double Width Ladder Frame 1350x2320mm(53.1"x91.3") 14.18 31.27
AL.MST.DWLF.4R Aluminum 4-Rung Double Width Ladder Frame 1350x1856mm(53.1"x73") 11.61 25.61
AL.MST.DWLF.3R Aluminum 3-Rung Double Width Ladder Frame 1350x1392mm(53.1"x54.8") 9.16 20.19
AL.MST.SWLF.5R Aluminum 5-Rung Single Width Ladder Frame 750x2320mm(29.5"x91.3") 11.65 25.69
AL.MST.SWLF.4R Aluminum 4-Rung Single Width Ladder Frame 750x1856mm(29.5"x73") 9.59 21.15
AL.MST.SWLF.3R Aluminum 3-Rung Single Width Ladder Frame 750x1392mm(29.5"x54.8") 7.64 16.85

Aluminum Mobile Scaffold Horizontal Braces
Model Description Weight(kg) Weight(lbs)
AL.MST.HB.1800 Aluminium Horizontal Brace 1800mm(71") 2.18 4.80
AL.MST.HB.2000 Aluminium Horizontal Brace 2000mm(78.74") 2.35 5.18
AL.MST.HB.2500 Aluminium Horizontal Brace 2500mm(98.42") 2.77 6.11
AL.MST.HB.3000 Aluminium Horizontal Brace 3000mm(118.11") 3.19 7.03

Aluminum Mobile Scaffold Diagonal Braces
Model Description Weight(kg) Weight(lbs)
AL.MST.DB.1800x928 Aluminium Diagonal Brace 2025(1800x928)mm 2.37 5.22
AL.MST.DB.2000x928 Aluminium Diagonal Brace 2205(2000x928)mm 2.52 5.56
AL.MST.DB.2500x928 Aluminium Diagonal Brace 2666(2500x928)mm 2.91 6.42
AL.MST.DB.3000x928 Aluminium Diagonal Brace 3140(3000x928)mm 3.31 7.30

Aluminum Mobile Scaffold Plain Braces
Model Description Weight(kg) Weight(lbs)
AL.MST.PB.750x1800 Aluminium Plain Brace 1950(750x1800)mm  2.30 5.08
AL.MST.PB.750x2000 Aluminium Plain Brace 2136(750x2000)mm 2.46 5.43
AL.MST.PB.750x2500 Aluminium Plain Brace 2610(750x2500)mm 2.86 6.31
AL.MST.PB.750x3000 Aluminium Plain Brace 3092(750x3000)mm 3.27 7.21
AL.MST.PB.1350x1800 Aluminium Plain Brace 2250(1350x1800)mm 2.56 5.64
AL.MST.PB.1350x2000 Aluminium Plain Brace 2413(1350x2000)mm 2.70 5.94
AL.MST.PB.1350x2500 Aluminium Plain Brace 2841(1350x2500)mm 3.06 6.74
AL.MST.PB.1350x3000 Aluminium Plain Brace 3290(1350x3000)mm 3.43 7.57

Aluminum Mobile Scaffold Plain Braces
Model Description Weight(kg) Weight(lbs)
AL.MST.CL.10 Aluminium Clip-in Ladder 10 steps 9.98 22.01
AL.MST.CL.9 Aluminium Clip-in Ladder 9 steps 9.30 20.51
AL.MST.CL.8 Aluminium Clip-in Ladder 8 steps 8.42 18.56
AL.MST.CL.7 Aluminium Clip-in Ladder 7 steps 7.63 16.83
AL.MST.CL.6 Aluminium Clip-in Ladder 6 steps 6.85 15.10
AL.MST.CL.5 Aluminium Clip-in Ladder 5 steps 5.70 12.57

Aluminum Mobile Scaffold Plain Platform
Model Description Weight(kg) Weight(lbs)
AL.MST.PLF.1800 Aluminium Plain Platform 610x1800mm(24"x71") 13.72 30.24
AL.MST.PLF.2000 Aluminium Plain Platform 610x2000mm(24"x78.74") 14.98 33.03
AL.MST.PLF.2500 Aluminium Plain Platform 610x2500mm(24"x98.42") 18.66 41.14
AL.MST.PLF.3000 Aluminium Plain Platform 610x3000mm(24"x118.11") 22.38 49.36

Aluminum Mobile Scaffold Trapdoor Platform
Model Description Weight(kg) Weight(lbs)
AL.MST.TPLF.1800 Aluminium Trapdoor Platform 610x1800mm(24"x71") 14.62 32.23
AL.MST.TPLF.2000 Aluminium Trapdoor Platform 610x2000mm(24"x78.74") 15.88 35.02
AL.MST.TPLF.2500 Aluminium Trapdoor Platform 610x2500mm(24"x98.42") 19.60 43.21
AL.MST.TPLF.3000 Aluminium Trapdoor Platform 610x3000mm(24"x118.11") 23.29 51.36

Aluminum Mobile Scaffold Toe Boards
Model Description Weight(kg) Weight(lbs)
AL.MST.TBD.1350x1800 Aluminium Toe Board 1350x1800mm(53.1"x71") 11.55 25.47
AL.MST.TBD.1350x2000 Aluminium Toe Board 1350x2000mm(53.1"x78.74") 12.19 26.88
AL.MST.TBD.1350x2500 Aluminium Toe Board 1350x2500mm(53.1"x98.42") 13.80 30.43
AL.MST.TBD.1350x3000 Aluminium Toe Board 1350x3000mm(53.1"x118.11") 15.40 33.95
AL.MST.TBD.750x1800 Aluminium Toe Board 750x1800mm(29.5"x71") 9.63 21.24
AL.MST.TBD.750x2000 Aluminium Toe Board 750x2000mm(29.5"x78.74") 10.27 22.65
AL.MST.TBD.750x2500 Aluminium Toe Board 750x2500mm(29.5"x98.42") 11.88 26.19
AL.MST.TBD.750x3000 Aluminium Toe Board 750x3000mm(29.5"x118.11") 13.40 29.54

Aluminum Mobile Scaffold Caster Jack and Wheel
Model Description Weight(kg) Weight(lbs)
AL.MST.CJW.600 600mm Aluminium Caster Jack and 6" wheel 5.39 11.88

Aluminum Mobile Scaffold Stabilizers
Model Description Weight(kg) Weight(lbs)
AL.MST.STB.25 Aluminium Fixed Stabilizer 2.5M 4.98 10.99
AL.MST.STB.50 Aluminium Large Stabilizer 5M 9.29 20.49
