PRODUCT

Cup Lock System Scaffold Standard
Model Description Weight(kg) Weight(lbs)
CL.S.3000 Cup Lock System Standard Spigoted 3000mm (9'10") 16.01 35.29
CL.S.2500 Cup Lock System Standard Spigoted 2500mm (8'2") 13.47 29.70
CL.S.2000 Cup Lock System Standard Spigoted 2000mm (6'6") 10.94 24.12
CL.S.1500 Cup Lock System Standard Spigoted 1500mm (4'11") 8.40 18.53
CL.S.1000 Cup Lock System Standard Spigoted 1000mm (3'3") 5.87 12.95
CL.S.500 Cup Lock System Standard Spigoted 500mm (1'8") 3.34 7.36
CL.S.305 Cup Lock System Standard Spigoted 305mm (1'0") 2.64 5.82
CL.S.2800NP Cup Lock System Standard no Spigot 2800mm (9'2") 14.51 32.00
CL.S.2300NP Cup Lock System Standard no Spigot 2300mm (7'6" ) 11.98 26.41
CL.S.1800NP Cup Lock System Standard no Spigot 1800mm (5'10") 9.45 20.83
CL.S.1300NP Cup Lock System Standard no Spigot 1300mm (4'3") 6.91 15.24
CL.S.800NP Cup Lock System Standard no Spigot 800mm (2'7") 4.38 9.66
CL.S.676NP Cup Lock System Standard no Spigot 676mm (2'2") 3.94 8.68
CL.S.300NP Cup Lock System Standard no Spigot 300mm (12") 1.85 4.07

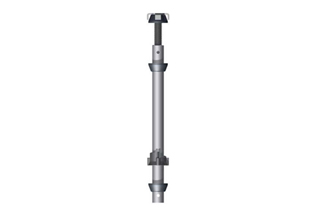

Cup Lock System Scaffold Decking Adaptor
Model Description Weight(kg) Weight(lbs)
CL.S.CDA.655 Cup Lock System Deck Adaptor 655mm (25") 3.36 7.40
CL.S.CDA.155 Cup Lock System Deck Adaptor 155mm (6") 2.28 5.03


Cup Lock System Scaffold Ledger
Model Description Weight(kg) Weight(lbs)
CL.L.3048 Cup-lock System Ledger 3048mm (10'-0") 11.06 24.38
CL.L.3000 Cup-lock System Ledger 3000mm (9'10-1/8") 10.88 24.00
CL.L.2745 Cup-lock System Ledger 2745mm (9') 9.97 21.98
CL.L.2590 Cup-lock System Ledger 2590mm (8'6") 9.41 20.76
CL.L.2500 Cup-lock System Ledger 2500mm (8'2-7/16") 9.09 20.04
CL.L.2440 Cup-lock System Ledger 2440mm (8') 8.88 19.57
CL.L.2400 Cup-lock System Ledger 2400mm (7'10-15/32") 8.74 19.27
CL.L.2300 Cup-lock System Ledger 2300mm (7'6-9/16") 8.37 18.46
CL.L.2130 Cup-lock System Ledger 2130mm (7') 7.76 17.12
CL.L.2100 Cup-lock System Ledger 2100mm (6'10-11/16") 7.66 16.88
CL.L.1830 Cup-lock System Ledger 1830mm (6') 6.69 14.75
CL.L.1800 Cup-lock System Ledger 1800mm (5'10-7/8") 6.58 14.51
CL.L.1600 Cup-lock System Ledger 1600mm (5'3") 5.86 12.93
CL.L.1570 Cup-lock System Ledger 1570mm (5'2") 5.75 12.69
CL.L.1520 Cup-lock System Ledger 1520mm (5') 5.58 12.29
CL.L.1500 Cup-lock System Ledger 1500mm (4'11") 5.50 12.14
CL.L.1300 Cup-lock System Ledger 1300mm (4'3-3/16") 4.79 10.55
CL.L.1270 Cup-lock System Ledger 1270mm (4'2") 4.68 10.32
CL.L.1220 Cup-lock System Ledger 1220mm (4') 4.50 9.92
CL.L.1150 Cup-lock System Ledger 1150mm (3'10") 4.25 9.37
CL.L.1065 Cup-lock System Ledger 1065mm (3'6") 3.94 8.70
CL.L.1050 Cup-lock System Ledger 1050mm (3'5-5/16") 3.89 8.58
CL.L.910 Cup-lock System Ledger 910mm (3'0") 3.39 7.47
CL.L.900 Cup-lock System Ledger 900mm (2'11-7/16") 3.35 7.39
CL.L.830 Cup-lock System Ledger 830mm (2'8-11/16") 3.10 6.84
CL.L.800 Cup-lock System Ledger 800mm (2'7-1/2") 2.99 6.60
CL.L.650 Cup-lock System Ledger 650mm (2'2") 2.46 5.41
CL.L.610 Cup-lock System Ledger 610mm (2'0") 2.31 5.10
CL.L.600 Cup-lock System Ledger 600mm (1'11-5/8") 2.28 5.02
CL.L.400 Cup-lock System Ledger 400mm (1'3-3/4") 1.56 3.44
CL.L.340 Cup-lock System Ledger 340mm (1'1-3/8") 1.34 2.96
CL.L.220 Cup-lock System Ledger 220mm (8-11/16") 0.91 2.01


Cup Lock System Scaffold Angle Transom
Model Description Weight(kg) Weight(lbs)
CL.T.2500 Cup-lock System Transom 2500mm (8'2-7/16") 19.20 42.34
CL.T.2440 Cup-lock System Transom 2440mm (8') 18.75 41.35
CL.T.2400 Cup-lock System Transom 2400mm (7'10-15/32") 19.75 43.56
CL.T.2300 Cup-lock System Transom 2300mm (7'6-9/16") 17.60 38.80
CL.T.2130 Cup-lock System Transom 2130mm (7') 16.33 36.01
CL.T.2000 Cup-lock System Transom 2000mm (6'6-3/4") 16.33 36.01
CL.T.1830 Cup-lock System Transom 1830mm (6') 14.09 31.07
CL.T.1800 Cup-lock System Transom 1800mm (5'10-7/8") 13.87 30.58
CL.T.1600 Cup-lock System Transom 1600mm (5'3") 12.26 27.04
CL.T.1570 Cup-lock System Transom 1570mm (5'2") 12.04 26.55
CL.T.1520 Cup-lock System Transom 1520mm (5') 11.67 25.73
CL.T.1500 Cup-lock System Transom 1500mm (4'11") 11.52 25.40
CL.T.1300 Cup-lock System Transom 1300mm (4'3-3/16") 10.03 22.11
CL.T.1220 Cup-lock System Transom 1220mm (4') 9.43 20.79
CL.T.910 Cup-lock System Transom 910mm (3') 7.00 15.45
CL.T.830 Cup-lock System Transom 830mm (2'8-11/16") 6.41 14.13
CL.T.650 Cup-lock System Transom 650mm (2'2") 5.07 11.17
CL.T.610 Cup-lock System Transom 610mm (2') 4.77 10.51


Cup Lock System Scaffold Bay Brace / Diagonal Brace
Model Description Weight(kg) Weight(lbs)
CL.DB.3050x2500 Cup-lock System Bay Brace 3944 (3050x2500)mm 11.15 24.59
CL.DB.3000x2500 Cup-lock System Bay Brace 3905 (3000x2500)mm 11.05 24.37
CL.DB.2745x2500 Cup-lock System Bay Brace 3713 (2745x2500)mm 10.55 23.27
CL.DB.2590x2500 Cup-lock System Bay Brace 3600 (2590x2500)mm 10.26 22.63
CL.DB.2500x2500 Cup-lock System Bay Brace 3536 (2500x2500)mm 10.10 22.27
CL.DB.2440x2500 Cup-lock System Bay Brace 3493 (2440x2500)mm 9.98 22.01
CL.DB.2400x2500 Cup-lock System Bay Brace 3466 (2400x2500)mm 9.91 21.85
CL.DB.2300x2500 Cup-lock System Bay Brace 3397 (2300x2500)mm 9.74 21.48
CL.DB.2130x2500 Cup-lock System Bay Brace 3284 (2130x2500)mm 9.44 20.82
CL.DB.1830x2500 Cup-lock System Bay Brace 3098 (1830x2500)mm 8.96 19.76
CL.DB.1800x2500 Cup-lock System Bay Brace 3081 (1800x2500)mm 8.92 19.67
CL.DB.1570x2500 Cup-lock System Bay Brace 2952 (1570x2500)mm 8.58 18.92
CL.DB.1520x2500 Cup-lock System Bay Brace 2926 (1520x2500)mm 8.51 18.77
CL.DB.1500x2500 Cup-lock System Bay Brace 2915 (1500x2500)mm 8.49 18.72

CL.DB.3050x2000 Cup-lock System Bay Brace 3647 (3050x2000)mm 10.38 22.90
CL.DB.3000x2000 Cup-lock System Bay Brace 3605(3000x2000)mm 10.27 22.66
CL.DB.2745x2000 Cup-lock System Bay Brace 3396 (2745x2000)mm 9.73 21.46
CL.DB.2590x2000 Cup-lock System Bay Brace 3272 (2590x2000)mm 9.41 20.75
CL.DB.2500x2000 Cup-lock System Bay Brace 3202(2500x2000)mm 9.23 20.35
CL.DB.2440x2000 Cup-lock System Bay Brace 3155 (2440x2000)mm 9.11 20.08
CL.DB.2400x2000 Cup-lock System Bay Brace 3124 (2400x2000)mm 9.03 19.91
CL.DB.2300x2000 Cup-lock System Bay Brace 3048 (2300x2000)mm 8.83 19.47
CL.DB.2130x2000 Cup-lock System Bay Brace 2922 (2130x2000)mm 8.50 18.75
CL.DB.1830x2000 Cup-lock System Bay Brace 2711 (1830x2000)mm 7.96 17.55
CL.DB.1800x2000 Cup-lock System Bay Brace 2690(1800x2000)mm 7.90 17.43
CL.DB.1600x2000 Cup-lock System Bay Brace 2561 (1600x2000)mm 7.57 16.69
CL.DB.1570x2000 Cup-lock System Bay Brace 2543 (1570x2000)mm 7.52 16.58
CL.DB.1520x2000 Cup-lock System Bay Brace 2512 (1520x2000)mm 7.44 16.41
CL.DB.1500x2000 Cup-lock System Bay Brace 2500 (1500x2000)mm 7.41 16.34
CL.DB.1300x2000 Cup-lock System Bay Brace 2385 (1300x2000)mm 7.11 15.68
CL.DB.1270x2000 Cup-lock System Bay Brace 2369 (1270x2000)mm 7.07 15.59
CL.DB.1220x2000 Cup-lock System Bay Brace 2343 (1220x2000)mm 7.00 15.44
CL.DB.1150x2000 Cup-lock System Bay Brace 2307 (1150x2000)mm 6.91 15.24
CL.DB.1065x2000 Cup-lock System Bay Brace 2266 (1065x2000)mm 6.80 15.00
CL.DB.910x2000 Cup-lock System Bay Brace 2197 (910x2000)mm 6.62 14.61
CL.DB.650x2000 Cup-lock System Bay Brace 2103 (650x2000)mm 6.38 14.07

CL.DB.1800x1500 Cup-lock System Bay Brace 2343(1800x1500)mm 7.00 15.44
CL.DB.1600x1500 Cup-lock System Bay Brace 2193(1600x1500)mm 6.61 14.58
CL.DB.1500x1500 Cup-lock System Bay Brace 2121(1500x1500)mm 6.43 14.17
CL.DB.1300x1500 Cup-lock System Bay Brace 1985(1300x1500)mm 6.08 13.40
CL.DB.1270x1500 Cup-lock System Bay Brace 1965(1270x1500)mm 6.02 13.28
CL.DB.1220x1500 Cup-lock System Bay Brace 1933(1220x1500)mm 5.94 13.10
CL.DB.1150x1500 Cup-lock System Bay Brace 1890(1150x1500)mm 5.83 12.85
CL.DB.1050x1500 Cup-lock System Bay Brace 1831(1050x1500)mm 5.68 12.52
CL.DB.830x1500 Cup-lock System Bay Brace 1714(830x1500)mm 5.37 11.85
CL.DB.650x1500 Cup-lock System Bay Brace 1635(650x1500)mm 5.17 11.40
CL.DB.610x1500 Cup-lock System Bay Brace 1619(610x1500)mm 5.13 11.30


Cup Lock System Scaffold Swivel Clamp Brace
Model Description Weight(kg) Weight(lbs)
CL.CB.2440x2000 Cup Lock Swivel Clamp Brace 2440x2000 (8') 10.03 22.12
CL.CB.2130x2000 Cup Lock Swivel Clamp Brace 2130x2000 (7') 9.43 20.80

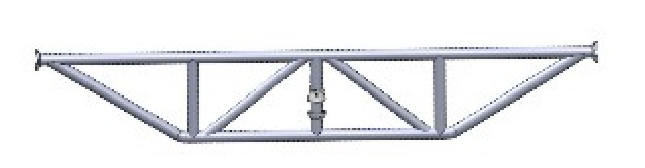

Cup Lock  System Scaffold Truss Beam / Truss Ledger
Model Description Weight(kg) Weight(lbs)
CL.TB.2130 Cup Lock Truss Beam 2130mm(7') 13.24 29.19
CL.TB.2440 Cup Lock Truss Beam 2440mm(8') 23.82 52.52
CL.TB.2745 Cup Lock Truss Beam 2745mm(9') 26.33 58.06
CL.TB.3050 Cup Lock Truss Beam 3050mm(10') 28.76 63.42
CL.TB.4270 Cup Lock Truss Beam 4270mm(14') 38.60 85.11
CL.TB.4880 Cup Lock Truss Beam 4880mm(16') 43.56 96.05
CL.TB.5490 Cup Lock Truss Beam 5490mm(18') 48.55 107.05
CL.TB.6400 Cup Lock Truss Beam 6400mm(21') 58.09 128.09


Cup Lock  System Scaffold Double Ledger
Model Description Weight(kg) Weight(lbs)
CL.DL.1520 Cup Lock Double Ledger 1520mm(5') 11.53 25.42
CL.DL.1830 Cup Lock Double Ledger 1830mm(6') 13.91 30.66
CL.DL.2130 Cup Lock Double Ledger 2130mm(7') 16.06 35.41
CL.DL.2440 Cup Lock Double Ledger 2440mm(8') 18.51 40.82
CL.DL.2745 Cup Lock Double Ledger 2745mm(9') 20.94 46.16
CL.DL.3050 Cup Lock Double Ledger 3050mm(10') 23.13 50.99

Cup Lock System Scaffold Side Bracket / Board Bracket
Model Description Weight(kg) Weight(lbs)
CL.SB.1 Cup Lock 1 Board Side Bracket 1.29 2.85
CL.SB.2 Cup Lock 2 Board Side Bracket 5.14 11.34
CL.SB.3 Cup Lock 3 Board Side Bracket 6.51 14.35

Cup Lock System Scaffold Omega Side Bracket / Board Bracket
Model Description Weight(kg) Weight(lbs)
CL.OSB.1 Cup Lock 1 Board Omega Side Bracket 2.59 5.71
CL.OSB.2 Cup Lock 2 Board Omega Side Bracket 7.53 16.60
CL.OSB.3 Cup Lock 3 Board Omega Side Bracket 9.78 21.56

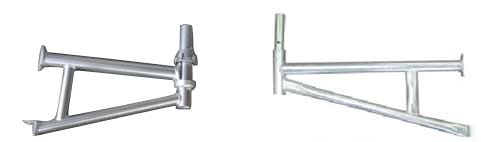

Cup Lock System Scaffold Cantilever "A" Frame
Model Description Weight(kg) Weight(lbs)
CL.CAF.15B Cup Lock Cantilever "A" Frame 1.5M (Type B) 13.13 28.96
CL.CAF.15S Cup Lock Cantilever "A" Frame 1.5M (Type S) 16.35 36.05

Cup Lock System Scaffold Stringer Stair
Model Description Weight(kg) Weight(lbs)
CL.ST.8 Cup Lock Stringer Stair 8' 86.24 190.15
CL.ST.7 Cup Lock Stringer Stair 7' 84.33 185.94

Cup Lock System Scaffold Access Ladder Gate
Model Description Weight(kg) Weight(lbs)
CL.ALG Cup Lock Access Ladder Gate 8.69 19.16
CL.ALG.3-5 Cup Lock Access Ladder Gate Adjustable 3'-5' 12.32 27.16

Cup Lock System Scaffold Access Ladder 13.75" Wide
Model Description Weight(kg) Weight(lbs)
CL.AL.3 Cup Lock Access Ladder 3' 5.28 11.64
CL.AL.4 Cup Lock Access Ladder 4' 6.80 14.99
CL.AL.5 Cup Lock Access Ladder 5' 8.33 18.37
CL.AL.6 Cup Lock Access Ladder 6' 9.85 21.72
CL.AL.7 Cup Lock Access Ladder 7' 11.37 25.07
CL.AL.8 Cup Lock Access Ladder 8' 12.88 28.40
CL.AL.10 Cup Lock Access Ladder 10' 16.37 36.10
CL.ALB Cup Lock Access Ladder Bracket 2.74 6.04

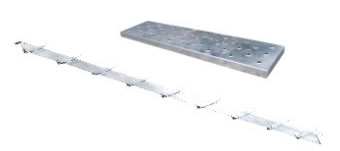

Cup Lock System Scaffold Steel Plank 9" Wide
Model Description Weight(kg) Weight(lbs)
CL.SSP.3050 Cup Lock Steel Plank 3050x230mm 18.94 41.77
CL.SSP.3000 Cup Lock Steel Plank 3000x230mm 18.67 41.16
CL.SSP.2745 Cup Lock Steel Plank 2745x230mm 17.26 38.06
CL.SSP.2500 Cup Lock Steel Plank 2500x230mm 15.77 34.78
CL.SSP.2440 Cup Lock Steel Plank 2440x230mm 15.44 34.05
CL.SSP.2300 Cup Lock Steel Plank 2300x230mm 14.53 32.05
CL.SSP.2130 Cup Lock Steel Plank 2130x230mm 13.60 29.98
CL.SSP.2100 Cup Lock Steel Plank 2100x230mm 13.43 29.62
CL.SSP.2000 Cup Lock Steel Plank 2000x230mm 12.88 28.40
CL.SSP.1830 Cup Lock Steel Plank 1830x230mm 11.94 26.34
CL.SSP.1800 Cup Lock Steel Plank 1800x230mm 11.78 25.97
CL.SSP.1600 Cup Lock Steel Plank 1600x230mm 10.68 23.54
CL.SSP.1570 Cup Lock Steel Plank 1570x230mm 10.51 23.18

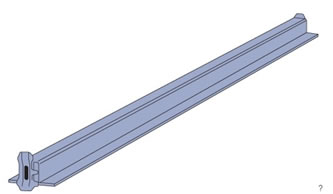

CL.SSP.1500 Cup Lock Steel Plank 1500x230mm 10.12 22.33
CL.SSP.1300 Cup Lock Steel Plank 1300x230mm 8.88 19.59
CL.SSP.1270 Cup Lock Steel Plank 1270x230mm 8.72 19.23
CL.SSP.1250 Cup Lock Steel Plank 1250x230mm 8.61 18.98
CL.SSP.1220 Cup Lock Steel Plank 1220x230mm 8.44 18.62
CL.SSP.1200 Cup Lock Steel Plank 1200x230mm 8.33 18.38
CL.SSP.1000 Cup Lock Steel Plank 1000x230mm 7.23 15.94
CL.SSP.910 Cup Lock Steel Plank 910x230mm 6.74 14.85
CL.SSP.900 Cup Lock Steel Plank 900x230mm 6.68 14.73
CL.SSP.830 Cup Lock Steel Plank 830x230mm 6.29 13.88
CL.SSP.650 Cup Lock Steel Plank 650x230mm 5.30 11.69
CL.SSP.610 Cup Lock Steel Plank 610x230mm 5.08 11.21
