PRODUCT

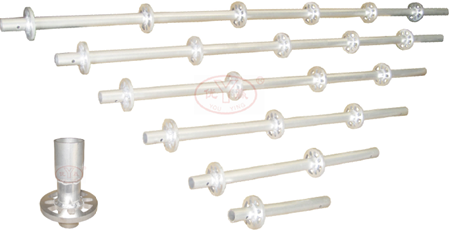

Aluminum Ring Lock Standard / Verticals
Model Description Weight(kg) Weight(lbs)
AL.AR.S.4000 Aluminium Ring Lock System Standard 4000mm 8.85 19.53
AL.AR.S.3500 Aluminium Ring Lock System Standard 3500mm 7.80 17.20
AL.AR.S.3000 Aluminium Ring Lock System Standard 3000mm 6.75 14.88
AL.AR.S.2500 Aluminium Ring Lock System Standard 2500mm 5.70 12.56
AL.AR.S.2000 Aluminium Ring Lock System Standard 2000mm 4.64 10.24
AL.AR.S.1500 Aluminium Ring Lock System Standard 1500mm 3.59 7.92
AL.AR.S.1000 Aluminium Ring Lock System Standard 1000mm 2.54 5.60
AL.AR.S.500 Aluminium Ring Lock System Standard 500mm 1.48 3.27
AL.AR.COL.205 Aluminium Ring Lock System Standard 205mm 0.74 1.63
AL.AR.COL.150 Aluminium Ring Lock System Standard 150mm 0.60 1.33

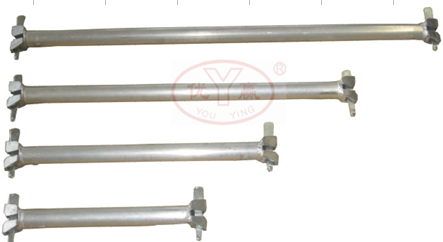

Aluminum Ring Lock Ledger / Horizontals
Model Description Weight(kg) Weight(lbs)
AL.AR.L.3099 Aluminium Ring Lock System Ledger 3099mm 5.42 11.95
AL.AR.L.3072 Aluminium Ring Lock System Ledger 3072mm 5.38 11.86
AL.AR.L.2572 Aluminium Ring Lock System Ledger 2572mm 4.58 10.09
AL.AR.L.2438 Aluminium Ring Lock System Ledger 2438mm 4.36 9.62
AL.AR.L.2134 Aluminium Ring Lock System Ledger 2134mm 3.87 8.54
AL.AR.L.2072 Aluminium Ring Lock System Ledger 2072mm 3.77 8.32
AL.AR.L.1828 Aluminium Ring Lock System Ledger 1828mm 3.38 7.46
AL.AR.L.1572 Aluminium Ring Lock System Ledger 1572mm 2.97 6.56
AL.AR.L.1524 Aluminium Ring Lock System Ledger 1524mm 2.90 6.39
AL.AR.L.1268 Aluminium Ring Lock System Ledger 1268mm 2.49 5.49
AL.AR.L.1088 Aluminium Ring Lock System Ledger 1088mm 2.20 4.84
AL.AR.L.1000 Aluminium Ring Lock System Ledger 1000mm 2.06 4.53
AL.AR.L.762 Aluminium Ring Lock System Ledger 762mm 1.68 3.69
AL.AR.L.732 Aluminium Ring Lock System Ledger 732mm 1.63 3.59
AL.AR.L.660 Aluminium Ring Lock System Ledger 660mm 1.51 3.33
AL.AR.L.560 Aluminium Ring Lock System Ledger 560mm 1.35 2.98

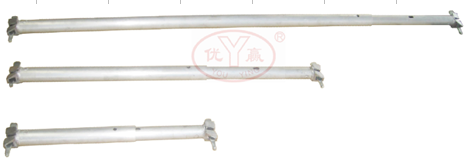

Aluminum Ring Lock Slide Ledger
Model Description Weight(kg) Weight(lbs)
AL.AR.SL.3099 Aluminium Ring Lock System Slide Ledger 3099mm 6.11 13.48
AL.AR.SL.2438 Aluminium Ring Lock System Slide Ledger 2438mm 6.11 13.48
AL.AR.SL.1828 Aluminium Ring Lock System Slide Ledger 1828mm 4.83 10.65
AL.AR.SL.1268 Aluminium Ring Lock System Slide Ledger 1268mm 3.50 7.73
AL.AR.SL.1000 Aluminium Ring Lock System Slide Ledger 1000mm 2.78 6.13
AL.AR.SL.800 Aluminium Ring Lock System Slide Ledger 800mm 2.29 5.05

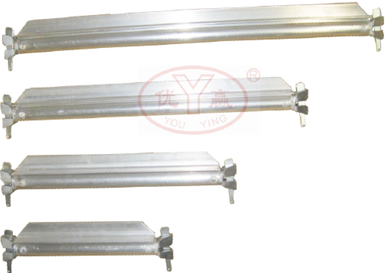

Aluminum Ring Lock Transom
Model Description Weight(kg) Weight(lbs)
AL.AR.T.3099 Aluminium Ring Lock System Transom 3099mm 16.15 35.62
AL.AR.T.3072 Aluminium Ring Lock System Transom 3072mm 16.01 35.31
AL.AR.T.2572 Aluminium Ring Lock System Transom 2572mm 13.40 29.54
AL.AR.T.2438 Aluminium Ring Lock System Transom 2438mm 12.70 28.00
AL.AR.T.2134 Aluminium Ring Lock System Transom 2134mm 11.10 24.48
AL.AR.T.2072 Aluminium Ring Lock System Transom 2072mm 10.78 23.77
AL.AR.T.1828 Aluminium Ring Lock System Transom 1828mm 9.51 20.96
AL.AR.T.1572 Aluminium Ring Lock System Transom 1572mm 8.16 18.00
AL.AR.T.1524 Aluminium Ring Lock System Transom 1524mm 7.91 17.44
AL.AR.T.1268 Aluminium Ring Lock System Transom 1268mm 6.25 13.77
AL.AR.T.1088 Aluminium Ring Lock System Transom 1088mm 5.35 11.79
AL.AR.T.1000 Aluminium Ring Lock System Transom 1000mm 4.91 10.84
AL.AR.T.762 Aluminium Ring Lock System Transom 762mm 3.75 8.26
AL.AR.T.732 Aluminium Ring Lock System Transom 732mm 3.60 7.93
AL.AR.T.560 Aluminium Ring Lock System Transom 560mm 2.74 6.05

Aluminum Ring Lock Transom for Corner
Model Description Weight(kg) Weight(lbs)
AL.AR.TC.1828 Ring Lock System Transom for Corner 1828mm 9.39 20.71
AL.AR.TC.2099 Ring Lock System Transom for Corner 2099mm 10.72 23.63
AL.AR.TC.2336 Ring Lock System Transom for Corner 2336mm 11.89 26.21
AL.AR.TC.2438 Ring Lock System Transom for Corner 2438mm 12.40 27.34
AL.AR.TBS.3099 Ring Lock System Transom with Bottom Support 3099mm 20.85 45.97

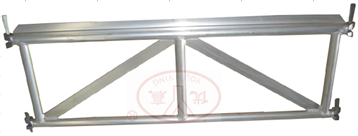

Aluminum Ring Lock Truss Transom
Model Description Weight(kg) Weight(lbs)
AL.AR.TT.1829 Aluminium Ring Lock System Truss Transom 1829mm 20.21 44.56
AL.AR.TT.2438 Aluminium Ring Lock System Truss Transom 2438mm 25.27 55.72
AL.AR.TT.3099 Aluminium Ring Lock System Truss Transom 3099mm 32.90 72.55

Aluminum Ring Lock Hop Up Bracket
Model Description Weight(kg) Weight(lbs)
AL.AR.HUB.1 Aluminium Ring Lock System 1 Board Hop Up Bracket 1.37 3.03
AL.AR.HUB.2 Aluminium Ring Lock System 2 Board Hop Up Bracket 4.93 10.86
AL.AR.HUB.3 Aluminium Ring Lock System 3 Board Hop Up Bracket 7.45 16.44

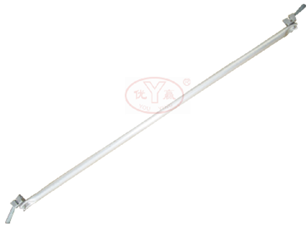

Aluminum Ring Lock Diagonal Brace
Model Description Weight(kg) Weight(lbs)
AL.AR.DB.3072 Aluminium Ring Lock System Diagonal Brace 2.0M*3.07M 6.74 14.86
AL.AR.DB.2572 Aluminium Ring Lock System Diagonal Brace 2.0M*2.57M 6.10 13.44
AL.AR.DB.2072 Aluminium Ring Lock System Diagonal Brace 2.0M*2.07M 5.51 12.15
AL.AR.DB.1572 Aluminium Ring Lock System Diagonal Brace 2.0M*1.57M 5.00 11.02
AL.AR.DB.1088 Aluminium Ring Lock System Diagonal Brace 2.0M*1.09M 4.60 10.15
AL.AR.DB.732 Aluminium Ring Lock System Diagonal Brace 2.0M*0.73M 4.40 9.71
AL.AR.EB.20*30 Aluminium Ring Lock System End Brace 2.0M*3.0M 6.77 14.93
AL.AR.EB.20*24 Aluminium Ring Lock System End Brace 2.0M*2.4M 5.93 13.08
AL.AR.EB.20*18 Aluminium Ring Lock System End Brace 2.0M*1.8M 5.25 11.57
AL.AR.EB.20*12 Aluminium Ring Lock System End Brace 2.0M*1.2M 4.74 10.44
AL.AR.EB.20*10 Aluminium Ring Lock System End Brace 2.0M*1.0M 4.55 10.02
AL.AR.EB.20*08 Aluminium Ring Lock System End Brace 2.0M*0.8M 4.42 9.74
AL.AR.EB.20*05 Aluminium Ring Lock System End Brace 2.0M*0.5M 4.34 9.56

Aluminum Ring Lock Horizontal Brace
Model Description Weight(kg) Weight(lbs)
AL.AR.HB.30*30 Aluminium Ring Lock System Horizontal Brace 3M*3M 7.62 16.80
AL.AR.HB.30*24 Aluminium Ring Lock System Horizontal Brace 3M*2.4M 6.92 15.26
AL.AR.HB.30*18 Aluminium Ring Lock System Horizontal Brace 3M*1.8M 6.37 14.06
AL.AR.HB.30*12 Aluminium Ring Lock System Horizontal Brace 3M*1.2M 5.99 13.21
AL.AR.HB.30*10 Aluminium Ring Lock System Horizontal Brace 3M*1.0M 5.86 12.91
AL.AR.HB.30*08 Aluminium Ring Lock System Horizontal Brace 3M*0.8M 5.77 12.71
AL.AR.HB.24*24 Aluminium Ring Lock System Horizontal Brace 2.4M*2.4M 6.12 13.50
AL.AR.HB.24*18 Aluminium Ring Lock System Horizontal Brace 2.4M*1.8M 5.48 12.09
AL.AR.HB.24*12 Aluminium Ring Lock System Horizontal Brace 2.4M*1.2M 5.02 11.07
AL.AR.HB.24*10 Aluminium Ring Lock System Horizontal Brace 2.4M*1.0M 4.85 10.69
AL.AR.HB.24*08 Aluminium Ring Lock System Horizontal Brace 2.4M*0.8M 4.73 10.44
AL.AR.HB.24*05 Aluminium Ring Lock System Horizontal Brace 2.4M*0.5M 4.66 10.28
AL.AR.HB.18*18 Aluminium Ring Lock System Horizontal Brace 1.8M*1.8M 4.74 10.45
AL.AR.HB.18*12 Aluminium Ring Lock System Horizontal Brace 1.8M*1.2M 4.17 9.19
AL.AR.HB.18*10 Aluminium Ring Lock System Horizontal Brace 1.8M*1.0M 3.95 8.71
AL.AR.HB.18*08 Aluminium Ring Lock System Horizontal Brace 1.8M*0.8M 3.80 8.38
AL.AR.HB.18*05 Aluminium Ring Lock System Horizontal Brace 1.8M*0.5M 3.65 8.04
