PRODUCT

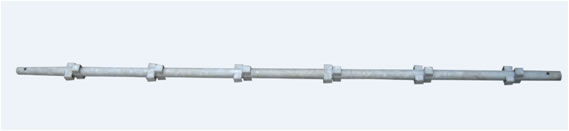

Japanese System Scaffold Standard / Vertical Post
Model Description Weight(kg) Weight(lbs)
JS.S.A360 Japanese System Scaffold Standard 3600mm 13.00 28.67
JS.S.A315 Japanese System Scaffold Standard 3150mm 11.45 25.25
JS.S.A270 Japanese System Scaffold Standard 2700mm 9.90 21.83
JS.S.A225 Japanese System Scaffold Standard 2250mm 8.35 18.41
JS.S.A180 Japanese System Scaffold Standard 1800mm 6.46 14.24
JS.S.A135 Japanese System Scaffold Standard 1350mm 5.25 11.57
JS.S.A090 Japanese System Scaffold Standard 900mm 3.70 8.15
JS.S.A072 Japanese System Scaffold Standard 720mm 3.20 7.07
JS.S.A045 Japanese System Scaffold Standard 450mm 2.15 4.73
JS.S.A033 Japanese System Scaffold Standard 330mm 1.82 4.01

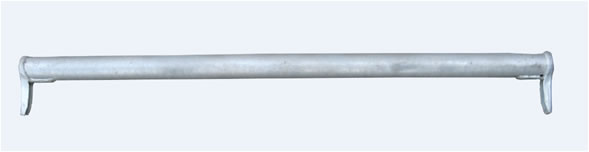

Japanese System Scaffold Ledger / Horizontal
Model Description Weight(kg) Weight(lbs)
JS.L.H180 Japanese System Scaffold Ledger 1800mm 4.42 9.74
JS.L.H120 Japanese System Scaffold Ledger 1200mm 3.04 6.70
JS.L.H090 Japanese System Scaffold Ledger 900mm 2.58 5.69
JS.L.H060 Japanese System Scaffold Ledger 600mm 1.67 3.67
JS.L.H040 Japanese System Scaffold Ledger 400mm 1.21 2.66
JS.L.H030 Japanese System Scaffold Ledger 300mm 0.98 2.16
JS.L.H015 Japanese System Scaffold Ledger 150mm 0.63 1.40

Japanese System Scaffold Board Bracket
Model Description Weight(kg) Weight(lbs)
JS.B.040 Japanese System Scaffold Board Bracket 400mm 1.84 4.05
JS.B.060 Japanese System Scaffold Board Bracket 600mm 2.60 5.73
JS.BH.040 Japanese System Scaffold Board Bracket  with Post 400mm 3.37 7.44
JS.BH.060 Japanese System Scaffold Board Bracket with Post 600mm 4.10 9.03

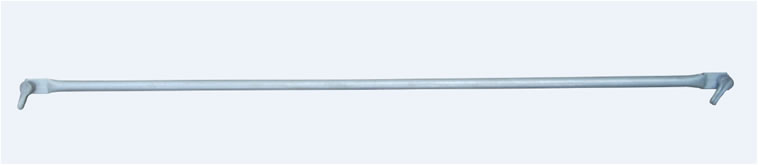

Japanese System Scaffold Diagonal Brace
Model Description Weight(kg) Weight(lbs)
JS.DB.1818 Japanese System Scaffold Diagonal Brace 1800x1800mm 6.63 14.62
JS.DB.1209 Japanese System Scaffold Diagonal Brace 1200x900mm 4.23 9.33
JS.DB.0909 Japanese System Scaffold Diagonal Brace 900x900mm 3.71 8.18
