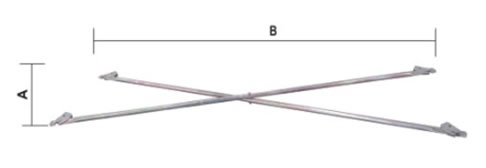

Snap On Cross Brace / X-Braces
Model Description (BxA) Weight(kg) Weight(lbs)
SO.CB.104 10'x4' Cross Brace Snap On 7.59 16.75
SO.CB.103 10'x3' Cross Brace Snap On 7.39 16.29
SO.CB.1034 10'x34" Cross Brace Snap On 7.36 16.22
SO.CB.1032 10'x32" Cross Brace Snap On 7.33 16.16
SO.CB.102 10'x2' Cross Brace Snap On 7.23 15.95
SO.CB.101 10'x1' Cross Brace Snap On 7.14 15.75
SO.CB.84 8'x4' Cross Brace Snap On 6.45 14.22
SO.CB.834 8'x34" Cross Brace Snap On 6.16 13.58
SO.CB.74 7'x4'Cross Brace Snap On 5.90 13.00
SO.CB.742 7'x42"Cross Brace Snap On 5.75 12.67
SO.CB.73 7'x3'Cross Brace Snap On 5.61 12.38
SO.CB.734 7'x34"Cross Brace Snap On 5.57 12.29
SO.CB.732 7'x32"Cross Brace Snap On 5.54 12.21
SO.CB.72 7'x2'Cross Brace Snap On 5.40 11.91
SO.CB.71 7'x1'Cross Brace Snap On 5.27 11.63
SO.CB.64 6'x4'Cross Brace Snap On 5.36 11.82
SO.CB.62 6'x2'Cross Brace Snap On 4.80 10.59
SO.CB.54 5'x4'Cross Brace Snap On 4.85 10.70
SO.CB.53 5'x3'Cross Brace Snap On 4.49 9.91
SO.CB.534 5'x34"Cross Brace Snap On 4.44 9.79
SO.CB.532 5'x32"Cross Brace Snap On 4.39 9.68
SO.CB.52 5'x2'Cross Brace Snap On 4.21 9.29
* Material: Steel grade Q235, tube OD.25.4x1.8mm (1"ODx0.071" thickness)

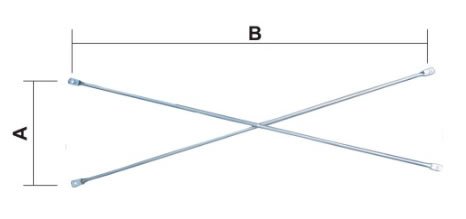

Punch Hole Cross Braces / X-Braces
Model Description (BxA) Weight(kg) Weight(lbs)
PH.CB.104 10'x4' Cross Brace Punch Hole 6.91 15.23
PH.CB.103 10'x3' Cross Brace Punch Hole 6.70 14.77
PH.CB.102 10'x2' Cross Brace Punch Hole 6.55 14.43
PH.CB.84 8'x4' Cross Brace Punch Hole 5.76 12.70
PH.CB.83 8'x3' Cross Brace Punch Hole 5.51 12.14
PH.CB.82 8'x2' Cross Brace Punch Hole 5.32 11.73
PH.CB.74 7'x4' Cross Brace Punch Hole 5.21 11.48
PH.CB.73 7'x3' Cross Brace Punch Hole 4.92 10.86
PH.CB.72 7'x2' Cross Brace Punch Hole 4.71 10.40
PH.CB.64 6'x4' Cross Brace Punch Hole 4.67 10.30
PH.CB.63 6'x3' Cross Brace Punch Hole 4.36 9.61
PH.CB.62 6'x2' Cross Brace Punch Hole 4.12 9.07
PH.CB.54 5'x4' Cross Brace Punch Hole 4.16 9.18
PH.CB.53 5'x3' Cross Brace Punch Hole 3.86 8.51
PH.CB.52 5'x2' Cross Brace Punch Hole 3.52 7.77
PH.CB.1034(D) 10'x3'x4' Cross Brace Double Punch Hole 6.91 15.23
PH.CB.734(D) 7'x3'x4' Cross Brace Double Punch Hole 5.21 11.48
PH.CBAS.1034(D) 10'x3'x4' Angle Cross Brace Double Punch Hole 9.00 19.85
PH.CBAS.734(D) 7'x3'x4' Cross Brace Angle Steel Double Punch Hole 6.79 14.97
* Material: Steel grade Q235, tube OD.25.4x1.8mm (1"ODx0.071" thickness)

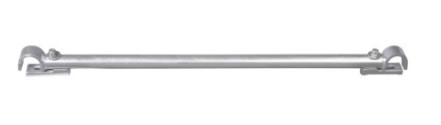

Snap On Guard Rails
Model Description Weight(kg) Weight(lbs)
SO.GR.10 10' Guard Rail Snap On 4.96 10.93
SO.GR.8 8' Guard Rail Snap On 4.06 8.94
SO.GR.7 7' Guard Rail Snap On 3.61 7.95
SO.GR.6 6' Guard Rail Snap On 3.15 6.95
SO.GR.5 5' Guard Rail Snap On 2.70 5.96
SO.GR.4 4' Guard Rail Snap On 2.25 4.96
SO.GR.3 3' Guard Rail Snap On 1.80 3.97
SO.GR.2 2' Guard Rail Snap On 1.35 2.98
* Material: Steel grade Q235, tube OD.32x2.0mm (1.25"ODx0.079" thickness)

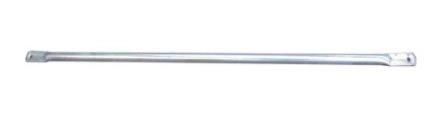

Punch Hole Guard Rails
Model Description Weight(kg) Weight(lbs)
PH.GR.10 10' Guard Rail Punch Hole 4.61 10.17
PH.GR.8 8' Guard Rail Punch Hole 3.71 8.18
PH.GR.7 7' Guard Rail Punch Hole 3.26 7.19
PH.GR.6 6' Guard Rail Punch Hole 2.81 6.20
PH.GR.5 5' Guard Rail Punch Hole 2.36 5.20
PH.GR.4 4' Guard Rail Punch Hole 1.91 4.21
PH.GR.3 3' Guard Rail Punch Hole 1.46 3.21
PH.GR.2 2' Guard Rail Punch Hole 1.01 2.22
* Material: Steel grade Q235, tube OD.32x2.0mm (1.25"ODx0.079" thickness)

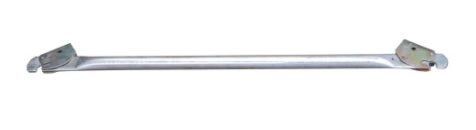

Gooser Braces
Model Description Weight(kg) Weight(lbs)
GB.105 10'x5' Gooser Brace 7.88 17.37
GB.1042 10'x42" Gooser Brace 7.53 16.61
GB.10 10' Gooser Brace 7.19 15.85
GB.8 8' Gooser Brace 6.01 13.24
GB.75 7'x5' Gooser Brace 6.36 14.03
GB.742 7'x42" Gooser Brace 5.90 13.02
GB.7 7' Gooser Brace 5.42 11.95
GB.6 6' Gooser Brace 4.83 10.66
GB.5 5' Gooser Brace 4.24 9.36
GB.3 3' Gooser Brace 3.07 6.76
GB.2 2' Gooser Brace 2.48 5.47
* Material: Steel grade Q235, tube OD.35x2.5mm (1.375"ODx0.095" thickness)
